Exterior Pillar Lighting
Layered horizontal illumination in three architectural scales

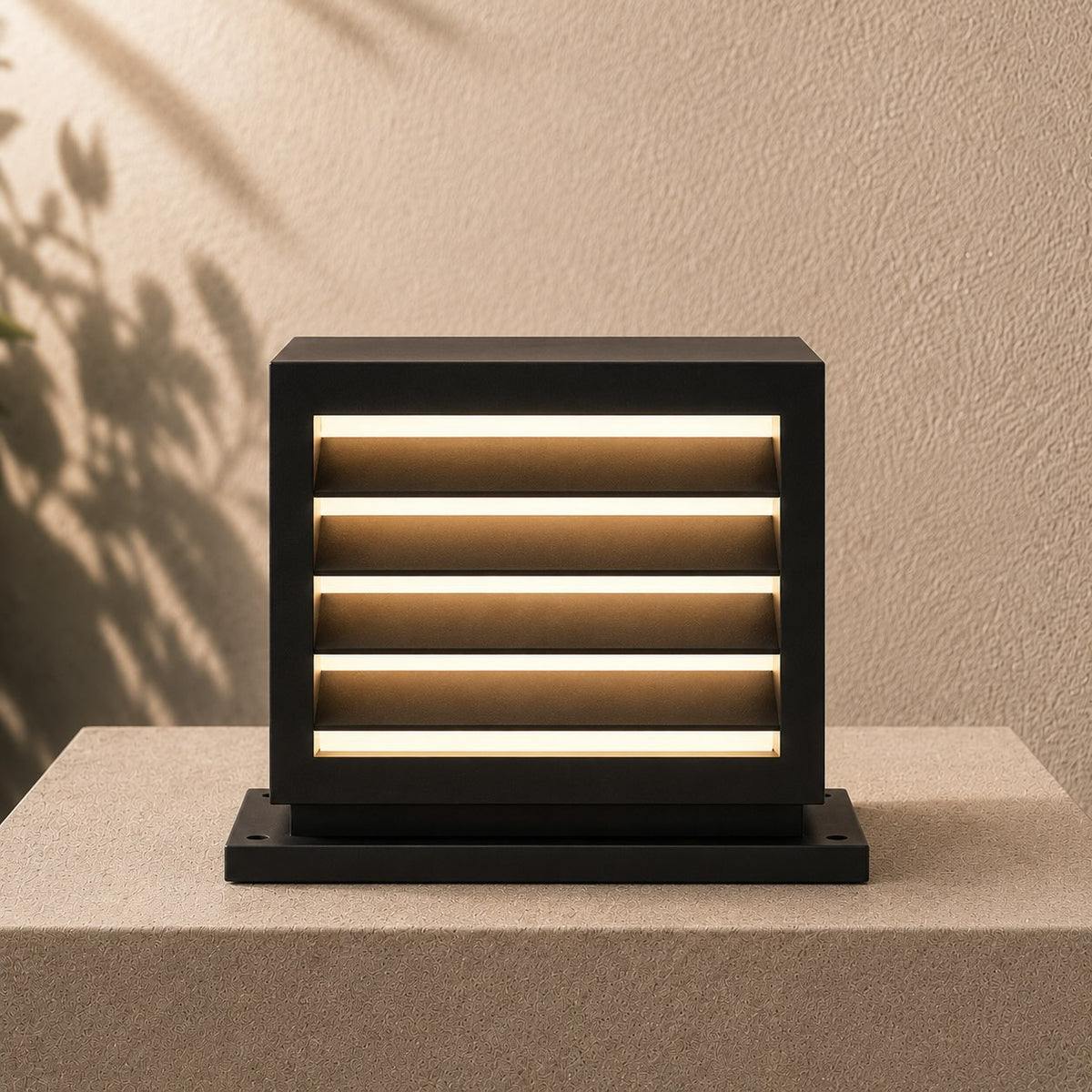

This modern outdoor pillar light combines a black aluminium body with a polycarbonate shade, using a series of horizontal illuminated bands to create a clean architectural presence. The layered front profile introduces depth without ornament, making the fixture well suited to contemporary terraces, porch railings, courtyard pillars, garden paths and entrance structures.
Three sizes range from L 9.8″ × W 9.8″ × H 8.3″ (L 24.9 × W 24.9 × H 21.1 cm) to L 15.7″ × W 15.7″ × H 13.4″ (L 39.9 × W 39.9 × H 34 cm). Separate solar-powered and hardwired configurations are available, both providing warm white 3000K illumination, while the solar model incorporates a 2400mAh rechargeable battery with approximately 8–10 hours of working time under suitable conditions.
01
Three Sizes
Medium, Large and X-Large proportions accommodate different posts, pillars and exterior layouts.
02
Solar or Hardwired
Choose the power configuration that best suits the intended installation.
03
Warm White 3000K
Consistent 3000K illumination creates a soft, warm exterior lighting character.
04
IP65 Rated
IP65-rated protection supports dependable use in suitable outdoor settings.
Design & Illumination
Horizontal light bands framed by restrained black geometry
Layered architectural profile
The square body is defined by a series of horizontal bands across the illuminated face, creating a repeated rhythm of light and shadow. The surrounding black frame keeps the overall silhouette disciplined and gives the fixture a contemporary architectural quality from both near and distant viewpoints.
Aluminium and polycarbonate
Aluminium forms the exterior structure, while the polycarbonate shade sits behind the horizontal elements to soften and distribute the warm light. The contrast between the dark body and illuminated inner surfaces becomes particularly pronounced after dusk.
Dimensions
Medium, Large and X-Large proportions
The collection is offered in three sizes, allowing the same architectural design to be scaled according to the supporting pillar, railing or landscape structure. Each size increases in footprint and overall height while retaining the same visual language.
| Variant |
Imperial |
Metric |
| Medium |
L 9.8″ × W 9.8″ × H 8.3″ |
L 24.9 × W 24.9 × H 21.1 cm |
| Large |
L 11.8″ × W 11.8″ × H 9.8″ |
L 30 × W 30 × H 24.9 cm |
| X-Large |
L 15.7″ × W 15.7″ × H 13.4″ |
L 39.9 × W 39.9 × H 34 cm |
Technical Details
Product specifications
Product Type
Outdoor Pillar Light
Power Options
Hardwired or Solar
Hardwired Voltage
110–220V
Finish
Black
Body Material
Aluminium
Shade Material
Polycarbonate (PC)
Colour Temperature
Warm White 3000K
Solar Battery Capacity
2400mAh
Solar Working Time
Approximately 8–10 Hours Under Suitable Conditions
Lighting Area
5–8 m² (54–86 sq ft)
Size Options
Medium, Large, X-Large
IP Rating
IP65
Installation
Base-Mounted
Suitable Areas
Courtyard, Villa, Terrace, Porch, Garden Walkway, Entrance Pillar
Environment
Outdoor Use
Size Options
Three scales for different posts and architectural settings
Medium
9.8″ × 9.8″ × H 8.3″
L 24.9 × W 24.9 × H 21.1 cm. The most compact option for smaller posts, railings and entrance structures.
Large
11.8″ × 11.8″ × H 9.8″
L 30 × W 30 × H 24.9 cm. A balanced mid-size proportion with increased architectural presence.
X-Large
15.7″ × 15.7″ × H 13.4″
L 39.9 × W 39.9 × H 34 cm. The largest configuration for substantial pillars and stronger visual scale.
Power Options
Choose solar flexibility or a hardwired connection
Solar Configuration
2400mAh rechargeable battery
The solar-powered version incorporates a 2400mAh rechargeable battery and provides approximately 8–10 hours of illumination under suitable conditions.
Hardwired Configuration
110–220V operation
The hardwired version operates at 110–220V for a fixed mains-powered installation.
Lighting Character
Warm 3000K illumination shaped by horizontal louvres
Warm white 3000K illumination creates a softer evening atmosphere across pathways, terraces, porches, courtyards and entrance areas. The horizontal front elements break the illuminated surface into distinct bands, giving the fixture a layered appearance when lit.
The polycarbonate shade helps diffuse the light behind the black aluminium structure, balancing functional close-range illumination with a controlled architectural effect.
Placement
Designed for pillars, terraces and exterior pathways
Entrance Pillars
Three available sizes allow the fixture to be matched to different entrance posts and architectural proportions.
Terraces & Porches
The layered horizontal light pattern introduces a contemporary illuminated detail around outdoor living areas.
Garden Walkways & Courtyards
Warm 3000K illumination suits exterior circulation areas where both visibility and atmosphere are important.
Outdoor Performance
IP65-rated protection for exterior environments
The fixture carries an IP65 rating for outdoor protection. Its aluminium body and polycarbonate shade are intended for exterior applications including courtyards, villas, terraces, porches, garden walkways and entrance pillars.
Installation
Base-mounted installation with solar or hardwired configurations
The fixture is designed for base-mounted placement on a suitable horizontal post, pillar or exterior structure. Select the solar or hardwired configuration according to the intended location and available power arrangement.
Professional installation recommended for the hardwired configuration. Electrical installation should be completed by a suitably qualified electrician and in accordance with applicable local electrical requirements.
Warranty
Two-year warranty
The fixture is supplied with a 2-year warranty.
Care
Simple care for aluminium and polycarbonate surfaces
Clean the fixture with a soft, dry or lightly dampened cloth. Avoid abrasive pads and harsh chemical cleaners. For hardwired installations, isolate electrical power before cleaning.
Dimension Reference
Medium, Large and X-Large size reference
