Modern Up & Down Outdoor Wall Light
Sculptural Arc Lighting with Layered Up & Down Illumination

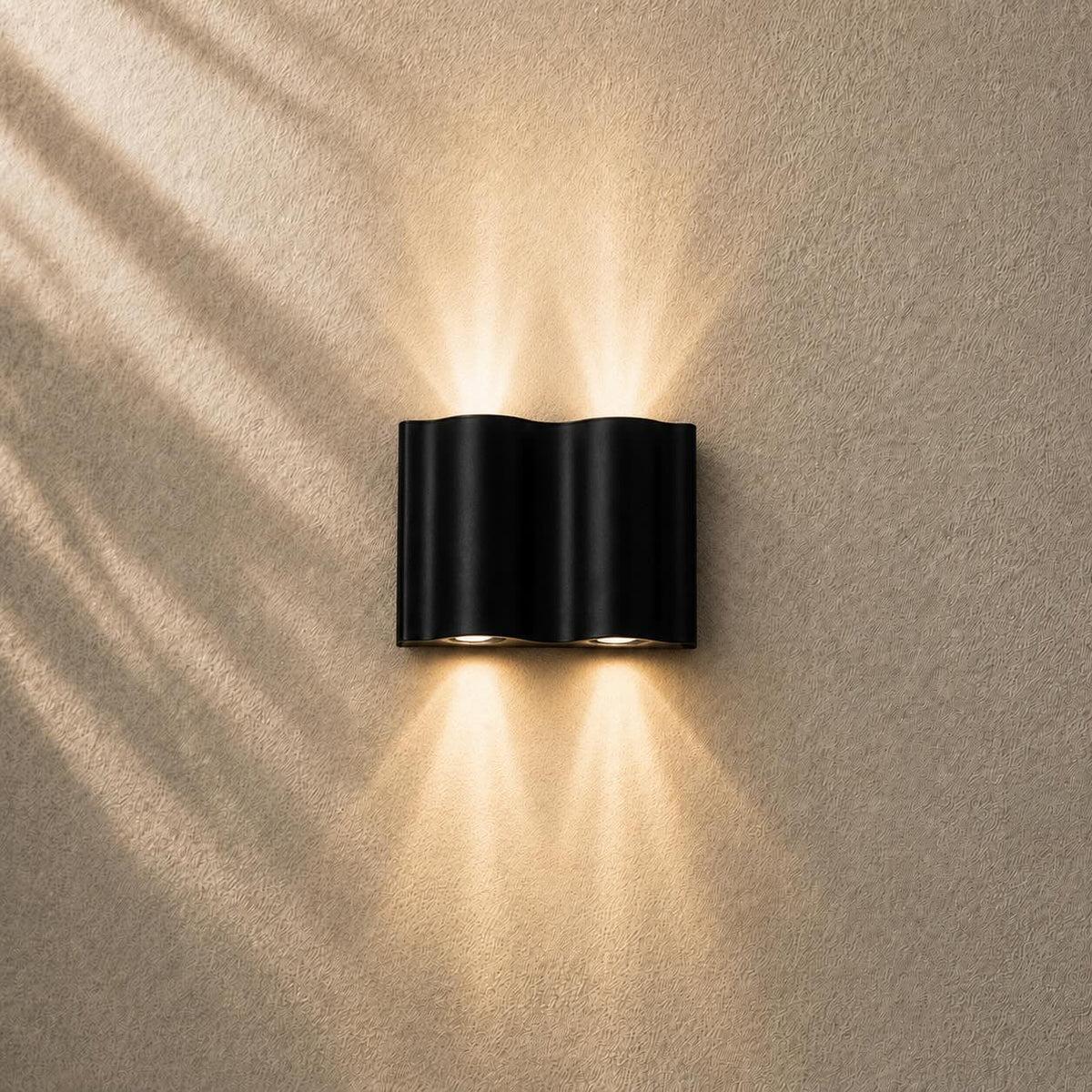

Defined by a flowing wavy-arc composition, this modern outdoor wall light brings movement and depth to exterior architecture. A Black die-cast aluminium body is paired with clear glass shades, creating a strong yet refined silhouette that becomes especially expressive when illuminated.
Integrated LED light sources project illumination both upward and downward, creating a dimensional wall-washing effect across façades and entrance areas. Available in 2-light, 4-light and 6-light configurations, the design can be scaled to suit different wall proportions while maintaining a consistent architectural language.
01 Wavy Arc Design Flowing geometry introduces visual rhythm and movement across exterior walls.
02 Three Configurations Choose from 2-light, 4-light or 6-light arrangements.
03 Up & Down Light Dual projection creates a layered architectural wall-washing effect.
04 IP65 Rated Designed for dependable use across exterior environments.
Design & Material
Curved architectural geometry framed in Black aluminium
Sculptural Wavy Arc Form
The fixture moves away from conventional straight-line wall lighting through a sequence of curved forms, creating a more dynamic visual rhythm across the surface of the wall.
Die-Cast Aluminium & Clear Glass
Die-cast aluminium provides the structural body while thickened clear glass shades protect the LED light sources. The Black finish gives the fixture a strong architectural outline against lighter exterior surfaces.
Dimensions
Three configurations for different wall scales
Each configuration combines a different number of illuminated sections with its own wattage and overall proportions, allowing the fixture to be selected according to wall width and desired visual presence.
| Configuration |
Power |
Height |
Width |
Depth |
Weight |
| 2-Light |
6W |
7.9″ / 20.1 cm |
6.3″ / 16.0 cm |
2.4″ / 6.1 cm |
0.99 lb / 0.45 kg |
| 4-Light |
12W |
6.3″ / 16.0 cm |
7.9″ / 20.1 cm |
2.4″ / 6.1 cm |
0.99 lb / 0.45 kg |
| 6-Light |
18W |
6.5″ / 16.5 cm |
8.3″ / 21.1 cm |
2.6″ / 6.6 cm |
1.21 lb / 0.55 kg |
Configuration Options
Select the scale that best suits the architecture
Compact 2-Light · 6W
A compact configuration measuring H 7.9″ × W 6.3″ × D 2.4″ / H 20.1 × W 16.0 × D 6.1 cm.
Mid-Scale 4-Light · 12W
A wider arrangement measuring H 6.3″ × W 7.9″ × D 2.4″ / H 16.0 × W 20.1 × D 6.1 cm.
Largest 6-Light · 18W
The most substantial configuration measures H 6.5″ × W 8.3″ × D 2.6″ / H 16.5 × W 21.1 × D 6.6 cm.
Technical Details
Product specifications
Product Type Up & Down Wall Light
Design Wavy Arc
Material Die-Cast Aluminium
Finish Black
Shade Material Glass
Shade Colour Clear
Light Source LED
LED Included Yes
Light Direction Upward & Downward
Light Colour Options Warm White / Cool White
Configurations 2-Light / 4-Light / 6-Light
Power 6W / 12W / 18W
Voltage 85–265V
Power Supply Hardwired
IP Rating IP65
2-Light Dimensions H 7.9″ × W 6.3″ × D 2.4″ / H 20.1 × W 16.0 × D 6.1 cm
4-Light Dimensions H 6.3″ × W 7.9″ × D 2.4″ / H 16.0 × W 20.1 × D 6.1 cm
6-Light Dimensions H 6.5″ × W 8.3″ × D 2.6″ / H 16.5 × W 21.1 × D 6.6 cm
Weight 0.99–1.21 lb / 0.45–0.55 kg
Application Outdoor
Lighting Character
Layered illumination above and below the fixture
High-brightness LED light sources project simultaneously upward and downward, creating a dimensional wall-washing effect that emphasises both the fixture's curved form and the surrounding architecture.
Warm White and Cool White options allow the overall atmosphere to be tailored to the exterior setting, from softer ambient lighting to a crisper contemporary appearance.
Exterior Placement
Designed for villas, entrances and courtyard architecture
Doorways & Garage Entrances The sculptural Black form provides a strong architectural accent while illuminating approach areas above and below.
Courtyard Corridors Repeated installations create a rhythmic sequence of curved forms and layered wall illumination.
Villa & Balcony Walls Multiple configuration sizes allow the same design language to be carried across different wall proportions.
Outdoor Performance
IP65 protection for exterior environments
The fixture carries an IP65 protection rating, supporting reliable performance across outdoor applications including entrance walls, courtyards, garage areas and balconies.
Die-cast aluminium construction and thickened glass shades combine a durable exterior structure with effective protection around the LED light sources.
Installation
Hardwired wall mounting for a clean architectural finish
The fixture is designed for permanent hardwired installation and operates across AC 85–265V.
Professional installation recommended. Electrical installation should be completed by a suitably qualified electrician and in accordance with applicable local electrical requirements.
For exterior use, ensure the mounting position and electrical connection are appropriate for the fixture's IP65 rating and intended location.
Care
Maintaining the aluminium and clear glass surfaces
Switch off power before cleaning. Remove surface dust and exterior residue using a soft, dry or lightly dampened cloth.
Clean the clear glass gently and avoid abrasive pads or harsh chemical cleaners that may affect the Black finish or glass surfaces.
Dimension Reference
2-Light, 4-Light and 6-Light dimensions
Refer to the dimension image below to compare the proportions of each configuration before selecting the scale best suited to your wall.
