Exterior Pillar Lighting
A faceted diamond form with warm integrated illumination

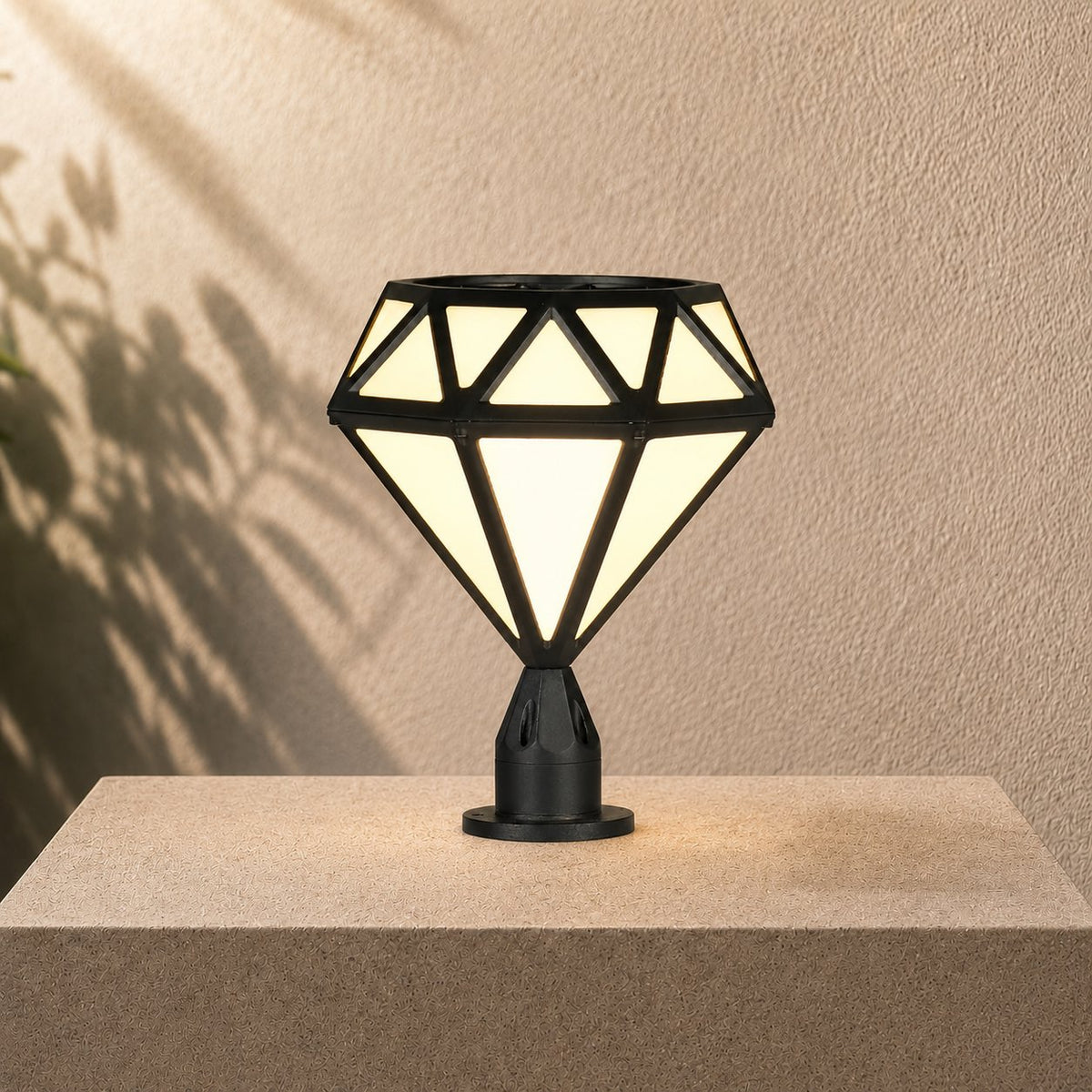

This outdoor pillar light is defined by a distinctive diamond-cut silhouette, using angular black framing to create a sculptural architectural feature for gate posts, courtyard fences, garden pillars and pathways. Die-cast aluminium forms the structural body, while a high-transparency polycarbonate shade sits within the faceted frame to soften and distribute the light.
Five sizes range from W 6″ × H 11″ (W 15.2 × H 27.9 cm) through to W 16″ × H 19″ (W 40.6 × H 48.3 cm). The fixture uses an integrated LED with warm white 3000K illumination and operates at 85–265V, with 8W, 12W, 18W, 24W and 30W power options available depending on the selected size.
01
Five Sizes
Widths from 6″ to 16″ provide multiple scales for different posts and pillars.
02
Diamond-Cut Form
Angular framing creates a sculptural three-dimensional silhouette around the illuminated diffuser.
03
Integrated 3000K LED
Warm white integrated LED lighting provides a consistent, comfortable exterior glow.
04
IP65 Rated
IP65-rated protection supports installation across suitable outdoor environments.
Design & Illumination
Angular geometry shaped around a luminous centre
Faceted architectural form
The lantern is constructed around a broad upper section that narrows towards the supporting base, creating the characteristic diamond-like profile. Repeated triangular frame elements introduce depth and visual rhythm, giving the fixture a more sculptural presence than a conventional square pillar light.
Aluminium and polycarbonate contrast
Black die-cast aluminium defines the exterior geometry, while the high-transparency polycarbonate shade forms the lighter internal surfaces. Once illuminated, the contrast between the dark angular framework and warm diffuser makes the structure particularly pronounced after dusk.
Dimensions
Five proportions for different exterior scales
The collection progresses from a compact 6″ (15.2 cm) width and 11″ (27.9 cm) height to a substantial 16″ (40.6 cm) width and 19″ (48.3 cm) height, allowing the same diamond-cut design to be coordinated with different gate posts, pillars and boundary structures.
| Variant |
Imperial |
Metric |
| Size 1 |
W 6″ × H 11″ |
W 15.2 × H 27.9 cm |
| Size 2 |
W 9″ × H 12″ |
W 22.9 × H 30.5 cm |
| Size 3 |
W 11″ × H 15″ |
W 27.9 × H 38.1 cm |
| Size 4 |
W 13″ × H 17″ |
W 33 × H 43.2 cm |
| Size 5 |
W 16″ × H 19″ |
W 40.6 × H 48.3 cm |
Technical Details
Product specifications
Product Type
Outdoor Pillar Light
Power Supply
Hardwired
Voltage
85–265V
Power Options
8W / 12W / 18W / 24W / 30W, depending on selected size
Body Material
Die-Cast Aluminium
Shade Material
Polycarbonate (PC)
Finish
Black
Light Source
Integrated LED
LED Included
Yes
Colour Temperature
Warm White 3000K
Control Type
Wall Switch
Lighting Area
5–15 m² (54–161 sq ft)
Size Options
Five Sizes
IP Rating
IP65
Installation
Base-Mounted, Hardwired
Suitable Areas
Courtyard, Garden, Gate Post, Fence Post, Pillar, Pathway
Environment
Outdoor Use
Size Options
Scale the diamond form to the surrounding architecture
Five proportions allow the fixture to move from a relatively compact post light through to a much more substantial architectural feature while retaining the same faceted design language.
Size 1
6″ Wide × 11″ High
W 15.2 × H 27.9 cm. The most compact proportion for smaller posts and boundary structures.
Size 2
9″ Wide × 12″ High
W 22.9 × H 30.5 cm. A broader scale while maintaining a relatively compact overall height.
Size 3
11″ Wide × 15″ High
W 27.9 × H 38.1 cm. A balanced mid-size option with stronger architectural presence.
Size 4
13″ Wide × 17″ High
W 33 × H 43.2 cm. A larger fixture suited to more substantial pillars and entrance posts.
Size 5
16″ Wide × 19″ High
W 40.6 × H 48.3 cm. The largest scale for prominent exterior structures and stronger visual weight.
Lighting Character
Warm 3000K light shaped by a faceted diffuser
The integrated LED produces warm white 3000K illumination, giving garden boundaries, pathways and entrance areas a softer evening character. The polycarbonate surfaces diffuse the light within the angular frame and reduce the visual harshness of the internal source.
The repeated triangular geometry remains clearly visible when the fixture is illuminated, allowing the lighting effect and architectural form to work together rather than reading as separate elements.
Placement
A sculptural feature for gates, pillars and outdoor boundaries
Gate & Fence Posts
Five size options make it possible to coordinate the fixture with different post widths and boundary scales.
Garden Pillars
The faceted silhouette introduces a more sculptural element to masonry pillars and landscaped settings.
Courtyards & Pathways
Warm integrated illumination suits exterior circulation areas where visibility and architectural character are both important.
Outdoor Performance
IP65-rated protection for exterior environments
The fixture carries an IP65 rating for outdoor protection. Its die-cast aluminium body and polycarbonate shade are intended for exterior applications including courtyards, gardens, gate posts, fence posts, pillars and pathways.
Installation
Hardwired base-mounted installation
The fixture is designed for fixed base-mounted installation on a suitable horizontal post, pillar or exterior structure and is operated through a wall switch.
Professional installation recommended. Electrical installation should be completed by a suitably qualified electrician and in accordance with applicable local electrical requirements.
Warranty
Two-year warranty
The fixture is supplied with a 2-year warranty.
Care
Simple care for aluminium and polycarbonate surfaces
Switch off power before cleaning. Use a soft, dry or lightly dampened cloth on the aluminium body and polycarbonate surfaces. Avoid abrasive pads and harsh chemical cleaners.
Dimension Reference
Five size options
